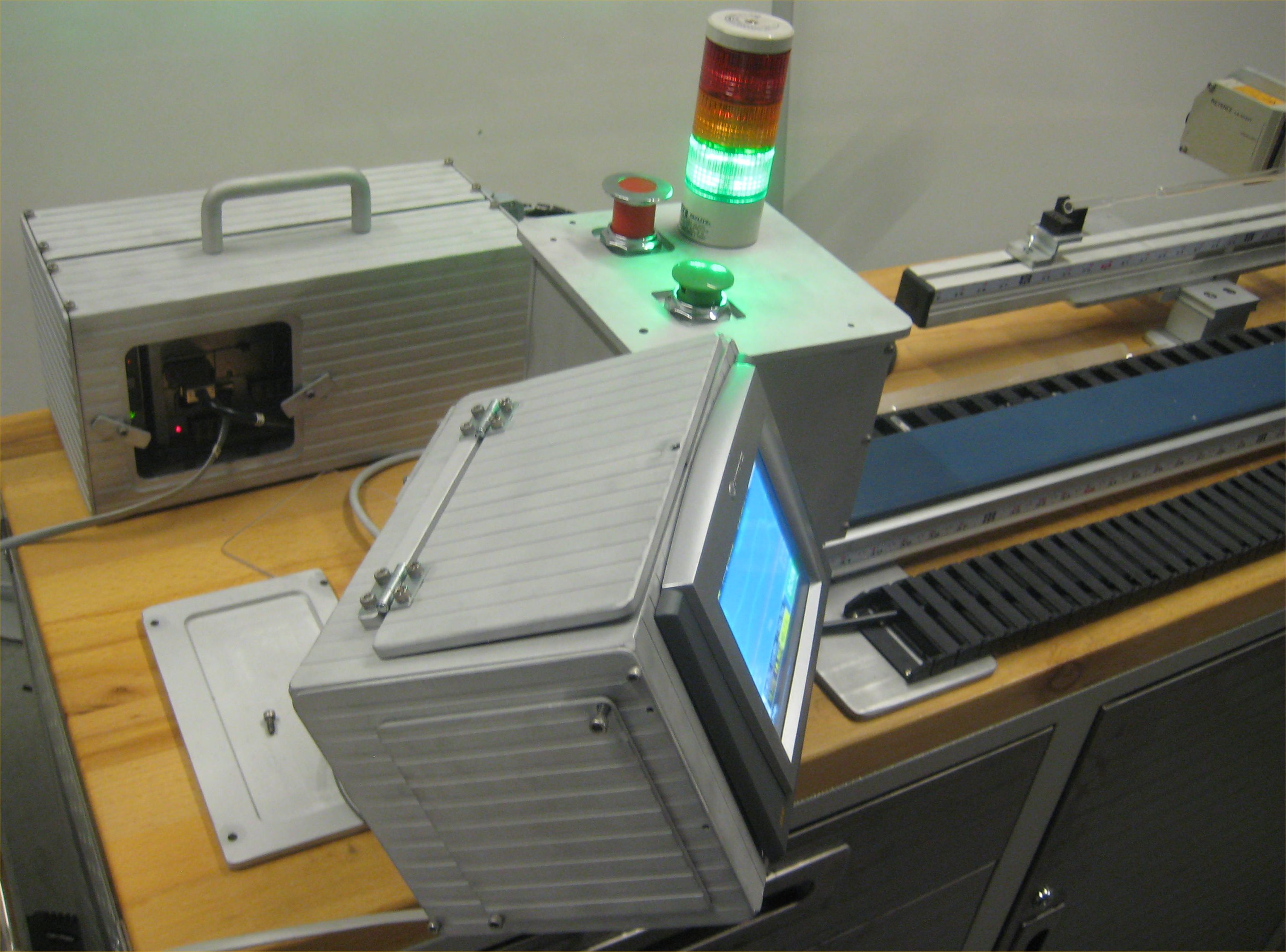

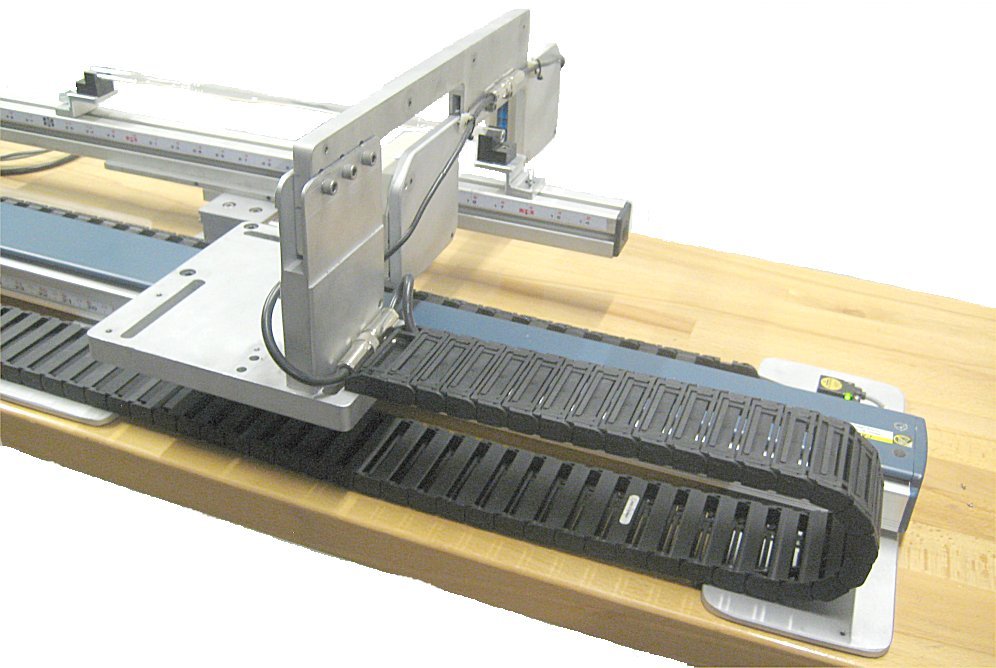

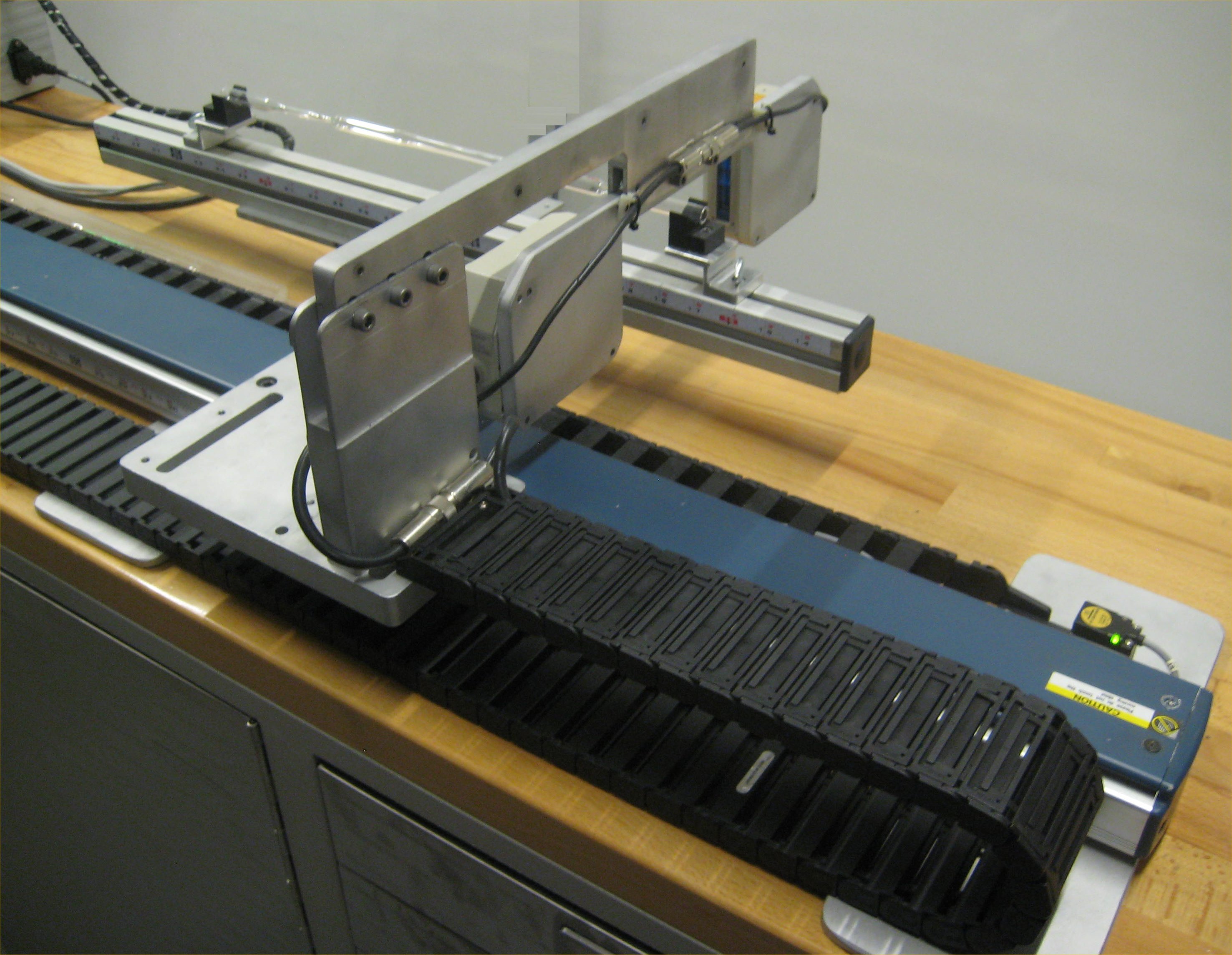

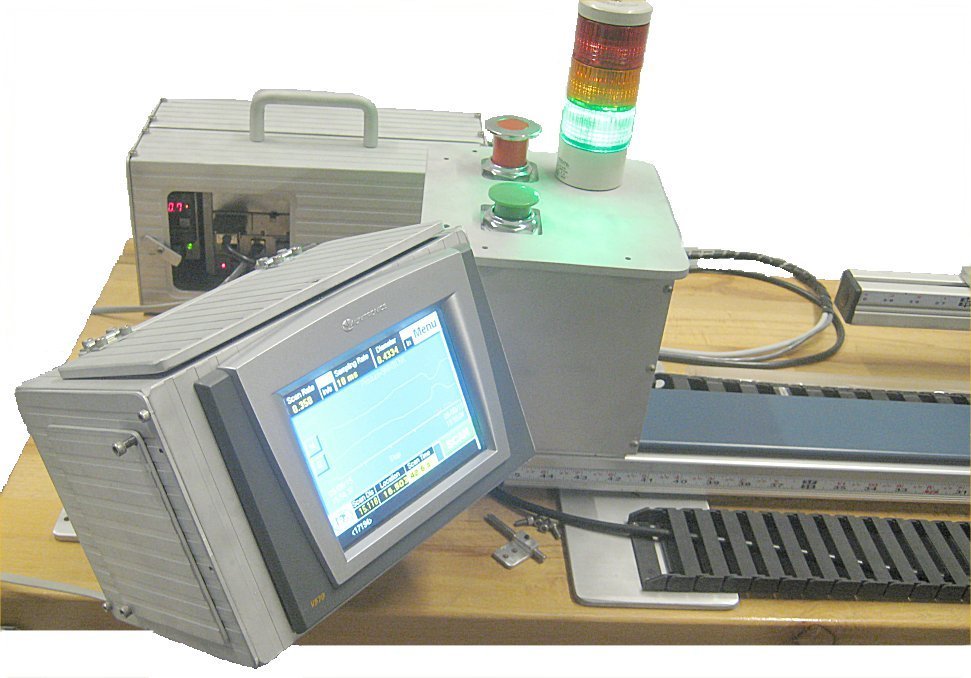

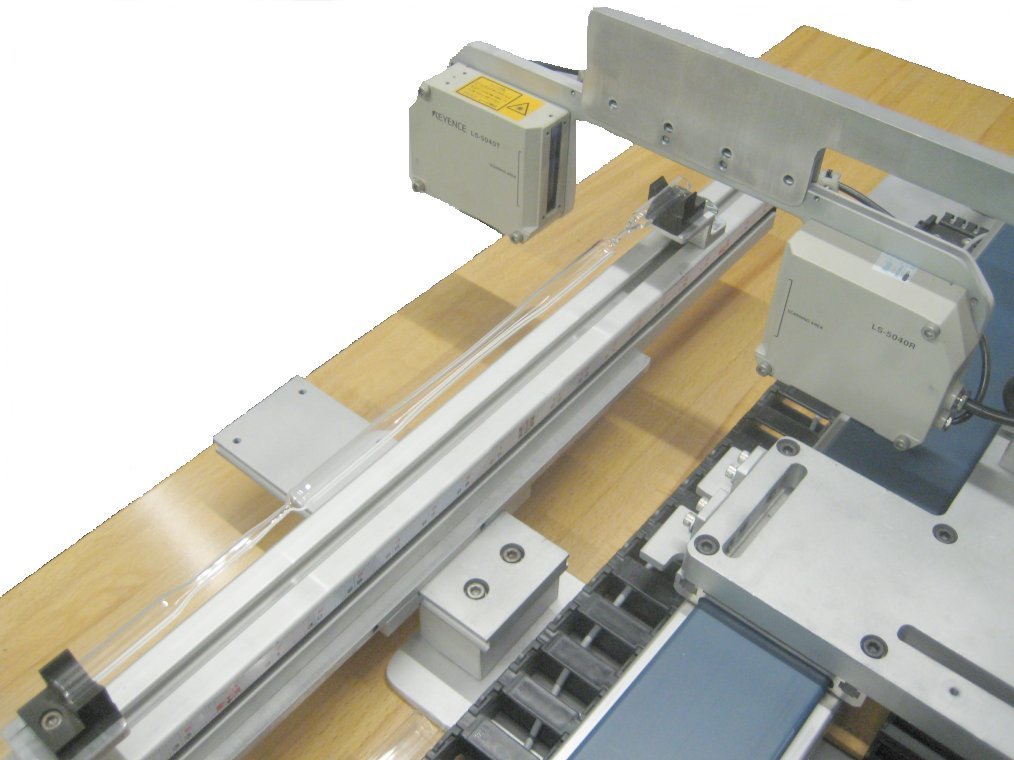

This is a new automated high accuracy profile laser micrometer measurement system. It is designed to increase efficiency and productivity. This automated laser scanner is capable of measuring profiles as small as 0.0080″ up to 1.5750″ with an accuracy of +/- 0.0001″. The unit comes already programmed and ready to run. The controller graphs the item being scanned and displays the profile on the Unitronics v570 touchscreen interface. The motorized micrometer scanner will take any item, scan a profile of a “good” part, store the data for this part as the standard, and then use that data to compare all other parts scanned to verify if they are within +/- upper and lower specification limits. Any data point not within the limits will be noted on the graphic of the item and the red LED stack light will illuminate to notify the operator of the location where the part is out of specification. The operator can use the “START” button on top of the scanner to begin a scan or use the touchscreen “Start” button.
Base Price: $17,500
